- All welded double wall 18 gauge construction with 1-1/2" insulating air space.
- 2" leak proof sill to contain leaks.
- Lockable flush mounted handle (gripper pad) with 2 keys.
- Door has 3 point locking system and radius corners, open full 180 °
- Door is double walled, 14 gauge outside with 18 gauge inside.
- 4" heavy duty welded hinges with brass pins.
- Twin 2" flame arrester vents.
- Adjustable leveling feet and grounding connector
- Powder coated yellow finish.
- Safety signage in large red letters.
- Galvanized steel shelves adjust on 2-1/2" centers.
- Chemical storage maximum - Class I & II - 60 gallons, Class III - 60 gallons
- Meets OSHA and NFPA code 30 standards.
|

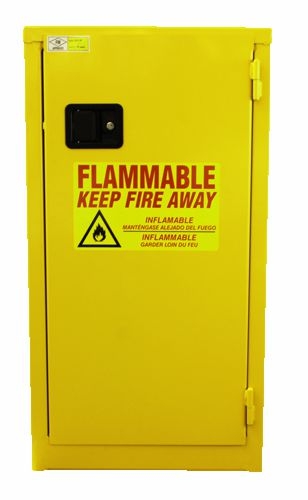

Model BA - Slim Line Safety Flammable Cabinet with Manual Close Doors
|
|
Model
|
Gallon Capacity
|
L x W x H
|
# of Shelves
|
Weight
|
|
BA06
|
6
|
23" x 18" x 22"
|
0
|
92-lbs.
|
|
BA12
|
12
|
23" x 18" x 35"
|
1
|
130-lbs.
|
|
BA18
|
18
|
23" x 18" x 44"
|
2
|
166-lbs.
|
|
BA24
|
24
|
23" x 18" x 65"
|
3
|
244-lbs.
|
|
BA60
|
60
|
23" x 34" x 65"
|
3
|
410-lbs.
|
|
