Series #MSB - Medium Duty - Slider Bed - Belt Conveyor - 18" Belt Width
|
|
18" Wide x 120 PVC Black Belt
|
|
|

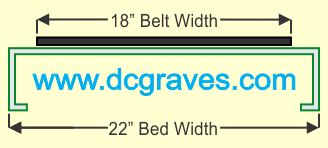

22" Wide x 4" High x 12 Gauge Painted Steel Bed
|
|
1/2 HP 230/460-3-60 Totally Enclosed Motor
|
|
60 FPM Constant Speed
|
|
Floor Supports Adjustable - 28.5" to 42.5"
|
|
Less Electrical Controls
|
Model
(click to order online)
|
Bed
Length
|
Overall
Length
|
Drive Pulley
Diameter
|
Weight
|
|
MSB-18-5
|
5' 0"
|
5' 10"
|
4"
|
315-lbs.
|
|
MSB-18-10
|
10' 0"
|
10' 10"
|
4"
|
382-lbs.
|
|
MSB-18-15
|
15' 0"
|
15' 10"
|
4"
|
475-lbs.
|
|
MSB-18-20
|
20' 0"
|
20' 10"
|
4"
|
542-lbs.
|
|
MSB-18-25
|
25' 0"
|
25' 10"
|
4"
|
635-lbs.
|
|
MSB-18-30
|
30' 0"
|
30 -10"
|
4"
|
702-lbs.
|
|
MSB-18-35
|
35' 0"
|
35' 10"
|
4"
|
795-lbs.
|
|
MSB-18-40
|
40' 0"
|
40' 10"
|
4"
|
862-lbs.
|
|
MSB-18-45
|
45' 0"
|
45' 10"
|
4"
|
955-lbs.
|
|
MSB-18-50
|
50' 0"
|
50' 10"
|
4"
|
1032-lbs.
|
Model
(click to order online)
|
Bed
Length
|
Overall
Length
|
Drive Pulley
Diameter
|
Weight
|
|
MSB-18-55
|
55' 0"
|
56' 2"
|
8"
|
1125-lbs.
|
|
MSB-18-60
|
60' 0"
|
61 '2"
|
8"
|
1192-lbs.
|
|
MSB-18-65
|
65' 0"
|
66' 2"
|
8"
|
1285-lbs.
|
|
MSB-18-70
|
70' 0"
|
71' 2"
|
8"
|
1364-lbs.
|
|
MSB-18-75
|
75' 0"
|
76' 2"
|
8"
|
1457-lbs.
|
|
MSB-18-180
|
80' 0"
|
81' 2"
|
8"
|
1514-lbs.
|
|
MSB-18-185
|
85' 0"
|
86' 2"
|
8"
|
1607-lbs.
|
|
MSB-18-90
|
90' 0"
|
91' 2"
|
8"
|
1673-lbs.
|
|
MSB-18-95
|
95' 0"
|
96' 2"
|
8"
|
1766-lbs.
|
|
MSB-18-100
|
100' 0"
|
101' 2"
|
8"
|
1833-lbs.
|
